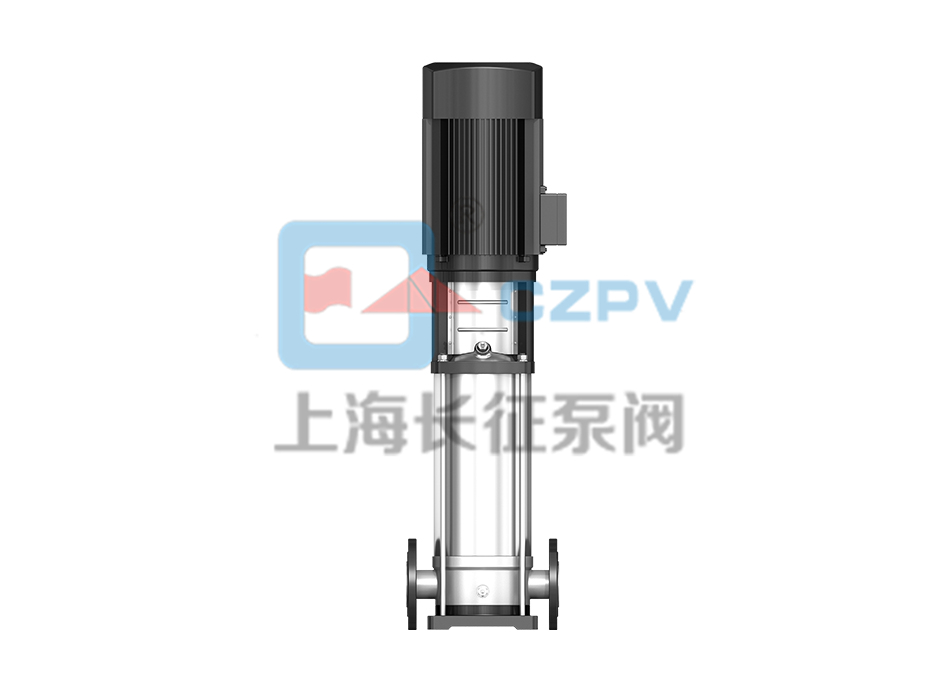

CDL立式不銹鋼多級增壓泵概述
CDL型不銹鋼沖壓多級增壓泵該系列是本廠集汽車工業的冷拉擠壓技術與凸焊接技術之工藝為一體的立體泵，采用丹麥制泵技術制造而成,該系列水力模型,高效節能.泵內部葉采用不銹鋼沖壓成形,流道光滑,避免產生二次污染.軸封采用耐磨機械密封,無泄漏.電機采用Y2鉛外殼,進口軸承,絕緣等級F級.其整體及其零件互換性強。
CDL立式不銹鋼多級增壓泵特點
CDL（F）立式不銹鋼輕型多級離心泵泵是采用國際先進技術制造而成，其優點是采用先進水力模型設計，高效率，高節能。
CDL立式不銹鋼多級增壓泵用途
適用于冷熱清潔,非易燃易爆,不含固體顆粒或纖維的液體，如醫藥,食品,飲料，鍋爐補水，環保水處理，生活水增壓，工業循環系統及加工系統等介質輸送。
|
型號
|
流量
|
揚程
(m) |
效率
(%) |
轉速
(r/min) |
功率
(KW) |
汽蝕余量
(NPSH)r |
高度
(mm) |
重量
(Kg) |
|
|
m3/h
|
L/S
|
||||||||
|
25CDL2-20
|
2
|
0.56
|
15
|
46
|
2900
|
0.37
|
1.8
|
486
|
20
|
|
25CDL2-30
|
2
|
0.56
|
22
|
46
|
2900
|
0.37
|
1.8
|
504
|
22.8
|
|
25CDL2-40
|
2
|
0.56
|
30
|
46
|
2900
|
0.55
|
1.8
|
522
|
23.6
|
|
25CDL2-60
|
2
|
0.56
|
45
|
46
|
2900
|
0.75
|
1.8
|
558
|
20
|
|
25CDL2-70
|
2
|
0.56
|
52
|
46
|
2900
|
0.75
|
1.8
|
576
|
25
|
|
25CDL2-80
|
2
|
0.56
|
60
|
46
|
2900
|
1.1
|
1.8
|
594
|
25
|
|
25CDL2-90
|
2
|
0.56
|
67
|
46
|
2900
|
1.1
|
1.8
|
612
|
25
|
|
25CDL2-100
|
2
|
0.56
|
75
|
46
|
2900
|
1.1
|
1.8
|
630
|
30
|
|
25CDL2-120
|
2
|
0.56
|
90
|
46
|
2900
|
1.5
|
1.8
|
721
|
30
|
|
25CDL2-130
|
2
|
0.56
|
97
|
46
|
2900
|
1.5
|
1.8
|
739
|
35
|
|
25CDL2-140
|
2
|
0.56
|
105
|
46
|
2900
|
1.5
|
1.8
|
757
|
35
|
|
25CDL2-150
|
2
|
0.56
|
112
|
46
|
2900
|
1.5
|
1.8
|
775
|
35
|
|
25CDL2-160
|
2
|
0.56
|
120
|
46
|
2900
|
1.5
|
1.8
|
793
|
35
|
|
25CDL2-170
|
2
|
0.56
|
127
|
46
|
2900
|
1.5
|
1.8
|
811
|
40
|
|
25CDL2-180
|
2
|
0.56
|
135
|
46
|
2900
|
2.2
|
1.8
|
829
|
40
|
|
25CDL2-190
|
2
|
0.56
|
142
|
46
|
2900
|
2.2
|
1.8
|
847
|
40
|
|
25CDL2-200
|
2
|
0.56
|
150
|
46
|
2900
|
2.2
|
1.8
|
865
|
40
|
|
25CDL2-210
|
2
|
0.56
|
157
|
46
|
2900
|
2.2
|
1.8
|
883
|
40
|
|
25CDL2-220
|
2
|
0.56
|
165
|
46
|
2900
|
2.2
|
1.8
|
901
|
45
|
|
25CDL2-230
|
2
|
0.56
|
172
|
46
|
2900
|
3
|
1.8
|
989
|
45
|
|
25CDL2-240
|
2
|
0.56
|
180
|
46
|
2900
|
3
|
1.8
|
1007
|
45
|
|
25CDL2-250
|
2
|
0.56
|
187
|
46
|
2900
|
3
|
1.8
|
1025
|
50
|
|
25CDL2-260
|
2
|
0.56
|
195
|
46
|
2900
|
3
|
1.8
|
1043
|
50
|
|
32CDL4-30
|
4
|
1.11
|
24
|
59
|
2900
|
0.55
|
1.8
|
528
|
20
|
|
32CDL4-40
|
4
|
1.11
|
32
|
59
|
2900
|
0.75
|
1.8
|
555
|
20
|
|
32CDL4-50
|
4
|
1.11
|
40
|
59
|
2900
|
1.1
|
1.8
|
582
|
20
|
|
32CDL4-60
|
4
|
1.11
|
48
|
59
|
2900
|
1.1
|
1.8
|
609
|
20
|
|
32CDL4-70
|
4
|
1.11
|
56
|
59
|
2900
|
1.5
|
1.8
|
691
|
25 |
|
32CDL4-90
|
4
|
1.11
|
72
|
59
|
2900
|
2.2
|
1.8
|
745
|
30
|
|
32CDL4-100
|
4
|
1.11
|
80
|
59
|
2900
|
2.2
|
1.8
|
772
|
30
|
|
32CDL4-110
|
4
|
1.11
|
88
|
59
|
2900
|
2.2
|
1.8
|
799
|
30
|
|
32CDL4-120
|
4
|
1.11
|
96
|
59
|
2900
|
2.2
|
1.8
|
826
|
30
|
|
32CDL4-130
|
4
|
1.11
|
104
|
59
|
2900
|
3
|
1.8
|
923
|
35
|
|
32CDL4-140
|
4
|
1.11
|
112
|
59
|
2900
|
3
|
1.8
|
950
|
35
|
|
32CDL4-150
|
4
|
1.11
|
120
|
59
|
2900
|
3
|
1.8
|
977
|
46.5
|
|
32CDL4-160
|
4
|
1.11
|
128
|
59
|
2900
|
3
|
1.8
|
1004
|
35
|
|
32CDL4-170
|
4
|
1.11
|
136
|
59
|
2900
|
4
|
1.8
|
1066
|
40
|
|
32CDL4-180
|
4
|
1.11
|
144
|
59
|
2900
|
4
|
1.8
|
1093
|
40
|
|
32CDL4-190
|
4
|
1.11
|
152
|
59
|
2900
|
4
|
1.8
|
1120
|
40
|
|
32CDL4-210
|
4
|
1.11
|
168
|
59
|
2900
|
4
|
1.8
|
1174
|
45
|
|
32CDL4-220
|
4
|
1.11
|
176
|
59
|
2900
|
4
|
1.8
|
1201
|
45
|
|
40CDL8-20
|
8
|
2.22
|
18
|
64
|
2900
|
0.75
|
2.3
|
595
|
25
|
|
40CDL8-30
|
8
|
2.22
|
27
|
64
|
2900
|
1.1
|
2.3
|
625
|
30
|
|
40CDL8-40
|
8
|
2.22
|
36
|
64
|
2900
|
1.5
|
2.3
|
710
|
30
|
|
40CDL8-50
|
8
|
2.22
|
45
|
64
|
2900
|
2.2
|
2.3
|
740
|
40
|
|
40CDL8-60
|
8
|
2.22
|
54
|
64
|
2900
|
2.2
|
2.3
|
770
|
40
|
|
40CDL8-70
|
8
|
2.22
|
63
|
64
|
2900
|
3
|
2.3
|
870
|
45
|
|
40CDL8-80
|
8
|
2.22
|
72
|
64
|
2900
|
3
|
2.3
|
900
|
45
|
|
40CDL8-90
|
8
|
2.22
|
81
|
64
|
2900
|
4
|
2.3
|
965
|
55
|
|
40CDL8-100
|
8
|
2.22
|
90
|
64
|
2900
|
4
|
2.3
|
995
|
55
|
|
40CDL8-110
|
8
|
2.22
|
99
|
64
|
2900
|
4
|
2.3
|
1025
|
55
|
|
40CDL8-120
|
8
|
2.22
|
108
|
64
|
2900
|
4
|
2.3
|
1055
|
55
|
|
40CDL8-130
|
8
|
2.22
|
117
|
64
|
2900
|
5.5
|
2.3
|
1125
|
80
|
|
40CDL8-150
|
8
|
2.22
|
135
|
64
|
2900
|
5.5
|
2.3
|
1185
|
80
|
|
40CDL8-160
|
8
|
2.22
|
144
|
64
|
2900
|
5.5
|
2.3
|
1215
|
80
|
|
40CDL8-170
|
8
|
2.22
|
153
|
64
|
2900
|
7.5
|
2.3
|
1245
|
86
|
|
40CDL8-180
|
8
|
2.22
|
162
|
64
|
2900
|
7.5
|
2.3
|
1275
|
90
|
|
40CDL8-190
|
8
|
2.22
|
171
|
64
|
2900
|
7.5
|
2.3
|
1305
|
90
|
|
40CDL8-200
|
8
|
2.22
|
180
|
64
|
2900
|
7.5
|
2.3
|
1335
|
95
|
|
50CDL16-20
|
16
|
4.44
|
22
|
71
|
2900
|
2.2
|
4.2
|
680
|
40
|
|
50CDL16-30
|
16
|
4.44
|
34
|
71
|
2900
|
3
|
4.2
|
795
|
50
|
|
50CDL16-40
|
16
|
4.44
|
46
|
71
|
2900
|
4
|
4.2
|
875
|
55
|
|
50CDL16-60
|
16
|
4.44
|
70
|
71
|
2900
|
5.5
|
4.2
|
1005
|
75
|
|
50CDL16-80
|
16
|
4.44
|
94
|
71
|
2900
|
7.5
|
4.2
|
1095
|
80
|
|
50CDL16-90
|
16
|
4.44
|
106
|
71
|
2900
|
11
|
4.2
|
1290
|
140
|
|
50CDL16-100
|
16
|
4.44
|
118
|
71
|
2900
|
11
|
4.2
|
1335
|
140
|
|
50CDL16-110
|
16
|
4.44
|
130
|
71
|
2900
|
11
|
4.2
|
1380
|
145
|
|
50CDL16-130
|
16
|
4.44
|
154
|
71
|
2900
|
15
|
4.2
|
1470
|
165
|
|
50CDL16-140
|
16
|
4.44
|
166
|
71
|
2900
|
15
|
4.2
|
1515
|
165
|
